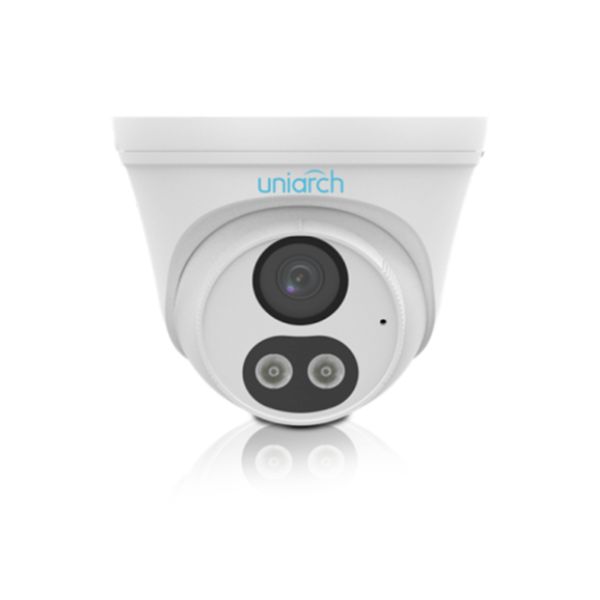

Model | IPC-T132-AF28-DL-ECO |
Camera Type | Turret / Fixed IP Camera |
Image Sensor | 1/3.0″ CMOS |
Resolution | 2 MP (1920×1080) |
Frame Rates | 1080p @ ~30 fps; 720p @ ~30 fps |
Lens | 2.8 mm fixed |
Horizontal Field of View (approx.) | ~87.8° |
Minimum Illumination | ~0.01 Lux (Color), 0 Lux with IR |
Night Vision / Dual Light | Smart IR + warm light up to ~30 m |
Video Compression | Ultra265, H.265, H.264 |
Image Enhancements | DWDR / Digital WDR, AGC, 2D/3D-DNR, ROI |
Intelligent Detection | Human Body Detection / Motion Detection / Audio Detection |
Audio | Built-in microphone |
Network Interface | 1 × RJ45 10/100 Mbps Ethernet |
Protocols / Standards | IPv4, ONVIF (Profiles S & T), HTTP, RTSP, etc. |
Power | PoE (IEEE 802.3af) |
Power Consumption | ~2.5 W – ~3.5 W (max) |
Operating Temperature | –30 °C to +60 °C |
Ingress Protection | IP67 (weatherproof) |
Adjustability | 3-axis mount |
Internal Storage | No (Micro SD not built-in) |
Alarm I/O | None |
Weight & Size | ~150–190 g; ~Ø118 mm housing |
Compatible With | NVRs, Web/Smartphone/CMS viewing via ONVIF support |
