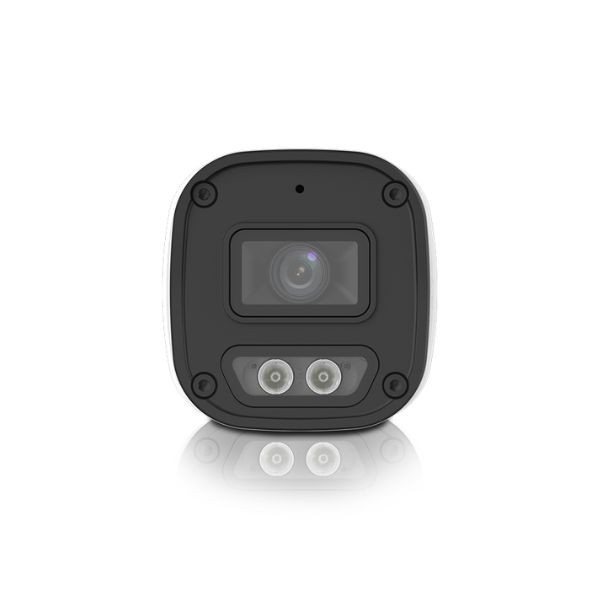

| Model | IPC-B132-AF40-DL-ECO |
| Camera Type | IP Bullet Network Camera |
| Series | ECO Series |
| Image Sensor | 1/3" CMOS |
| Max Resolution | 2 Megapixel (1920 × 1080) |
| Frame Rate | Up to 30 fps @ 1080p |
| Lens Type | Fixed Lens |
| Lens Size | 4.0 mm |
| Field of View | H: ~67° / V: ~37° / D: ~78° |
| Day / Night | IR Cut Filter (Auto) |
| Illumination Type | Dual Light (IR + Warm Light) |
| IR Distance | Up to 30 m |
| Warm Light Distance | Up to 15 m |
| Compression | Ultra 265 / H.265 / H.264 |
| Video Streaming | Dual Stream |
| Noise Reduction | 2D / 3D DNR |
| Image Features | BLC, HLC, Defog, Smart IR |
| Intelligent Features | Motion Detection, Human Detection |
| Audio | Built-in Microphone |
| Network Interface | 1 × RJ45 10/100 Mbps Ethernet |
| Network Protocols | IPv4, RTSP, TCP/IP, UDP, DHCP, DNS, ONVIF |
| ONVIF | Profile S / Profile T |
| Power Supply | 12V DC ±25% |
| PoE | Supported (IEEE 802.3af) |
| Power Consumption | Max. ~3.5 W |
| Operating Temperature | -30°C to +60°C |
| Operating Humidity | ≤ 95% RH (non-condensing) |
| Ingress Protection | IP67 |
| Housing Material | Plastic |
| Color | White |
| Dimensions | Approx. 140 × 61 × 65 mm |
| Weight | Approx. 0.15 kg |
| Installation | Wall / Ceiling Mount |
