Category

Technical Details

Hardware Interfaces

8 × 10/100/1000 Mbps RJ45 adaptive ports

Standard Protocols

IEEE 802.3, IEEE 802.3u, IEEE 802.3x

Switching Bandwidth

16 Gbps backplane bandwidth

MAC Address Table

2K entries

Transmission Method

Store-and-Forward

Access Method

CSMA/CD

Operation Modes

Half-duplex, Full-duplex, Auto-negotiation, Auto MDI/MDI-X

LED Indicators

9 sapphire green LEDs (1 × Power, 8 × Link/Activity)

Power Supply

DC 5V / 800mA

Enclosure Material

High-quality steel housing

Special Features

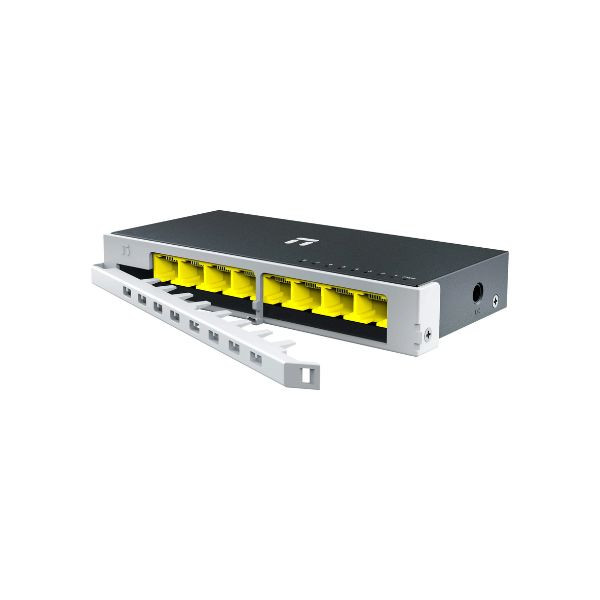

Attached patented cable safety lock, wall-mountable design, plug-and-play setup

Dimensions (L×W×H)

150 mm × 70 mm × 22.55 mm (5.91" × 2.76" × 0.89")

Operating Temp.

0°C to 40°C (32°F to 104°F)

Operating Humidity

10% to 90% RH (non-condensing)

Storage Temp.

-20°C to 70°C (-4°F to 158°F)

Storage Humidity

5% to 90% RH (non-condensing)
