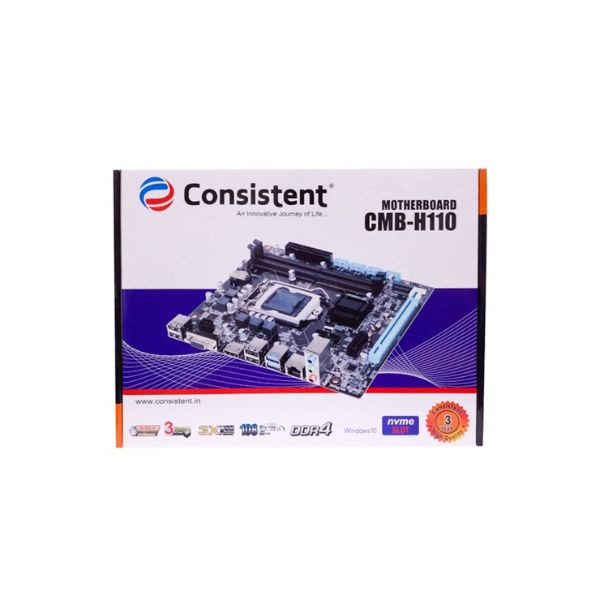

Product Details of Consistent H110 motherboard (CMB-H110)
Feature | Specification Details |
|---|---|
| Model | Consistent CMB-H110 / H110 DDR4 |
| Chipset | Intel H110 Express |
| CPU Socket | LGA 1151 |
| CPU Support | Intel 6th & 7th Gen Core i3/i5/i7, Pentium, and Celeron |
| Memory Support | 2 x DDR4 DIMM slots (Dual Channel) |
| Max RAM | Up to 32GB |
| Memory Speed | 2133 MHz / 2400 MHz (Up to 2666 MHz supported by some variants) |
| Expansion Slots | 1 x PCIe x16, 2 x PCIe x1 |
| Storage | 4 x SATA III (6 Gb/s), 1 x M.2 NVMe Slot |
| USB Ports | 4 x USB 3.0 (Back/Header), 2 x USB 2.0 |
| Display Output | 1 x HDMI, 1 x VGA |
| Audio | Realtek 6-Channel HD Audio |
| LAN | Realtek Gigabit Ethernet (10/100/1000 Mbps) |
| Form Factor | Micro-ATX (Approx. 190 x 170 mm) |
